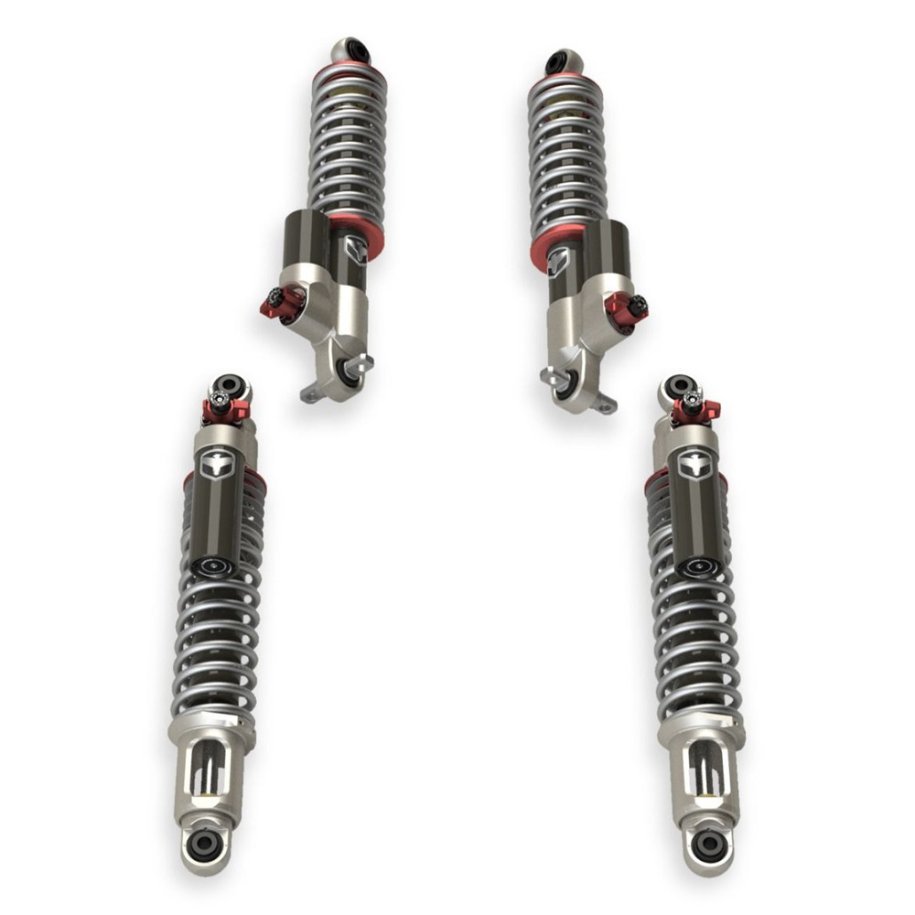

Coilovers set TeraFlex Falcon Series 3.3 Fast Adjust Piggyback Lift 3,5"

• Fast adjust knob with 2 basic positions: soft, firm
• Smaller knob for 8 position additional hardness scale in the "Firm" mode
• Piggyback fluid passage design flows 6 times more oil than restrictive reservoir hose
• Increases vehicle stability
• Modular body cap design for versatile mounting and precise reservoir positioning
• Internal hydraulic bump stops for controlled rebound and reduced hard bottoming
• Proprietary sealed gimbal bearings for solid, quiet and positive control
• Special rear shock absorber mounts to reduce dead length and increase travel
• Front wheel travel: 8.8", rear wheel travel: 12.4" with 37" tyres
• Lift height adjustment with quick and accurate snap ring grooves
• Preset for 3,5" lift above base Bronco height
• Internal bump stops designed for up to 37" tyres
• 2.3" shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• 1-piece Teflon bronze piston wear band w/ O-ring
• Hard anodized 6061-T6 aluminum alloy billet piston
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Designed, engineered, and assembled in-house from domestic and globally sourced components

In the box:

• (4) Coilover shock Falcon 3.3 Series Fast Adjust Piggyback
• Rear axle-side track bar mount
• Brake line relocation kit
• Hardwdare

Notes:

• 3,5" lift above base Bronco height
• Allows mounting of 37" tyres
• Wheel alignment required
• Installation of included rear track bar bracket and brake line relocation kit required for increased lift and wheel travel
• Minimum wheel spacing for rear shock reservoir clearance 4.5" or equivalent wheel adapters for OEM wheels
• Lifting heights shown are averages; actual final lifting height will depend on various factors such as winch, bumpers, spare tyre and load weight
• Rear ride height adjustable in 1/4" increments without removing shocks
