SAHARA TUBE KIT BLK 20\ LED SUITS 3921840 INCL BUFFER"

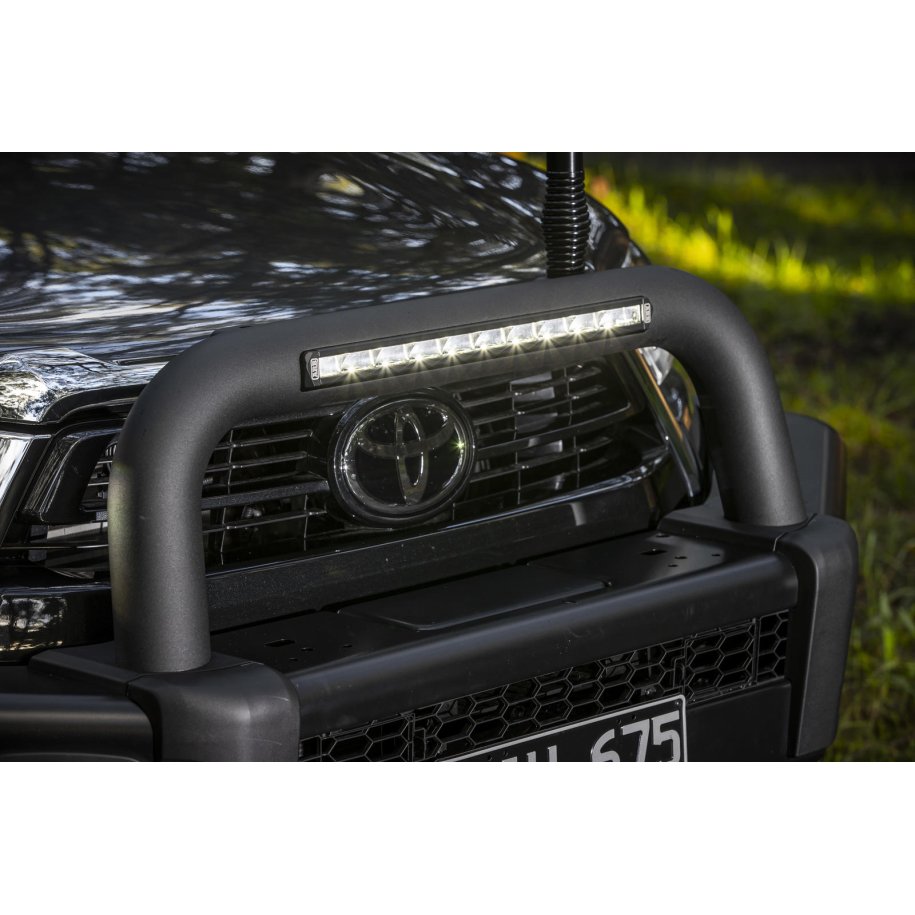

Summit Sahara Tube with LED Light Bar

Key Features

• Unique reflector design to provide good distance and width for highway driving
• Virtually indestructible hardened polycarbonate lens
• Extruded aluminium body finished in black powder coat
• Comes pre-assembled in Sahara Tube kit. Vertical adjustment provided through rear of Sahara tube
• Sahara Tube features additional openings to allow air flow over and around the LED light bar
• Over and under voltage protection
• Reverse polarity protection
• Breather with pressure-tested seal
• Vibration and UV tested
• Thermal management
• Dust and waterproof to IP68
• Protected against radio frequency (RFI) and electromagnetic (EMC) interference
• Sahara tube finished in IntegritÔäó textured black powder coat
• Kit includes LED light bar, Sahara Tube kit and top buffer section
• Requires ARB wiring loom 3500810 for fitment

Technical Specifications

• Input 12V to 48V
• Power 55 W
• 10 x OSRAM 6.5W LED's
• Current draw 4.0A @ 14.2V
• Output ÔÇô RAW 4081 lumens ÔÇô Effective 3866 lumens
• 1 Lux at 445m
• Spread Horizontal 8-¦ & Vertical 6-¦
• Input Cable Length 550mm
• Total Measurement 494.4 x 35 x 67mm. Weight of LED Light bar 1.25kg
• Operating Temperature -40-¦C to +85-¦C (-40-¦F to +185-¦F)
• Colour Temperature 5500-6500KRuntime life 50,000hrs
• Connector 2 pin DT ÔÇô Over moulded waterproof plug
• Certifications R10, R12, CE and ROHS
• Warranty 3 years
• Suitable for use with ARB driving light loom 3500810
