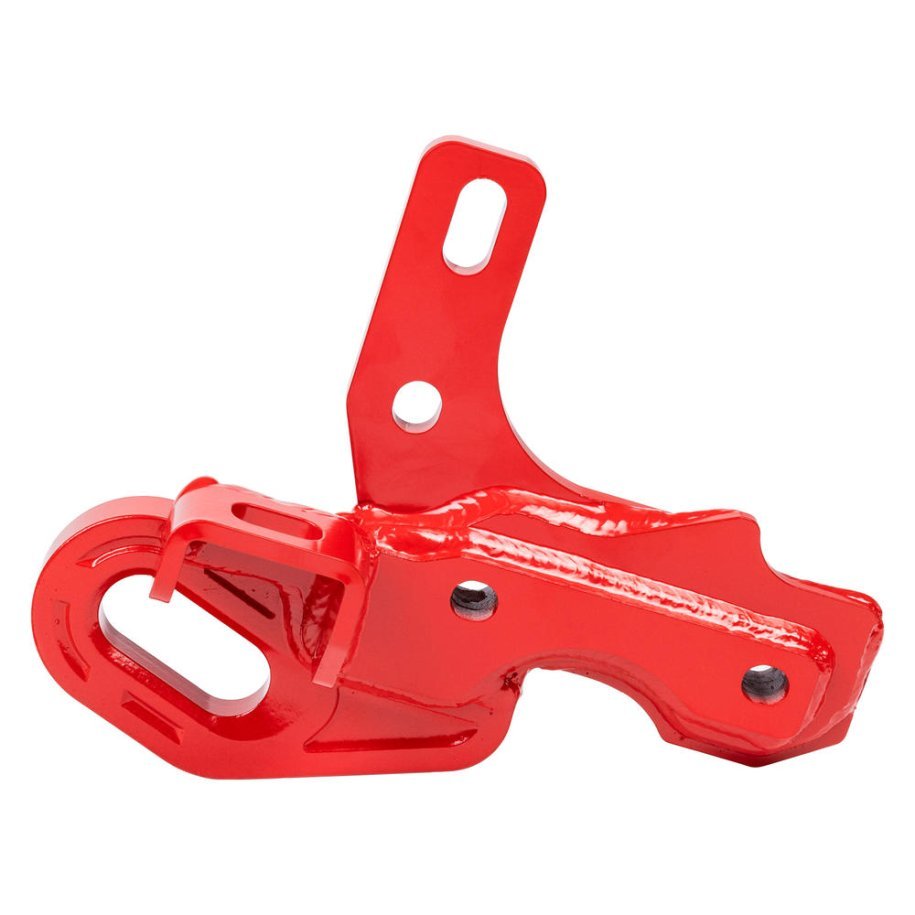

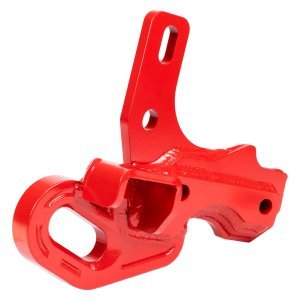

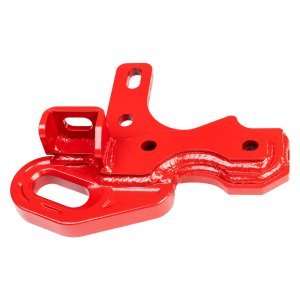

REC POINT FORGED LC70 LHS 70 series 99 on 4/6/8 cylinder

RECOVERY POINTS

ARB Fabrication engineers have developed Forged Recovery Points to suit the Toyota Landcruiser 70 series ranging from 1999 to the latest facelift MY24 models, all engine variants are also catered for. Separate left and right hand side Forged Recovery Points were developed and will suit ARBs range of frontal protection bars.   Each recovery point is rated at 8000kg and use of bridle strap is not required.

Fitment with OE bumper is not compatible.  A new radiator guard (3412160) with a different cut out profile is currently being developed to cater for both left and right recovery points as the existing radiator guard only caters for the previous LHS only recovery point.  Further PIB for radiator guard will be sent separately when development is complete.


FEATURES:

• \t
• Developed to fit Toyota Landcruiser 70 series with ARB Frontal Protection\t
• Rated in a direction of pull up to the maximum angle of 35 degrees\t
• Forged recovery eye slot allows the recommended 4.75t bow shackle to be fed through and the 8000kg strap attached via the pin instead of the bow\t
• The opening of each Forged Recovery Point features a radius edge to work with ARB Soft Shackle PN ARB2018\t
• New radiator guard in development to suit left and right side recovery points.
