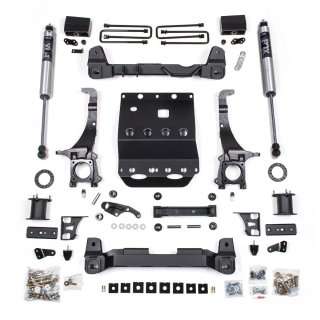

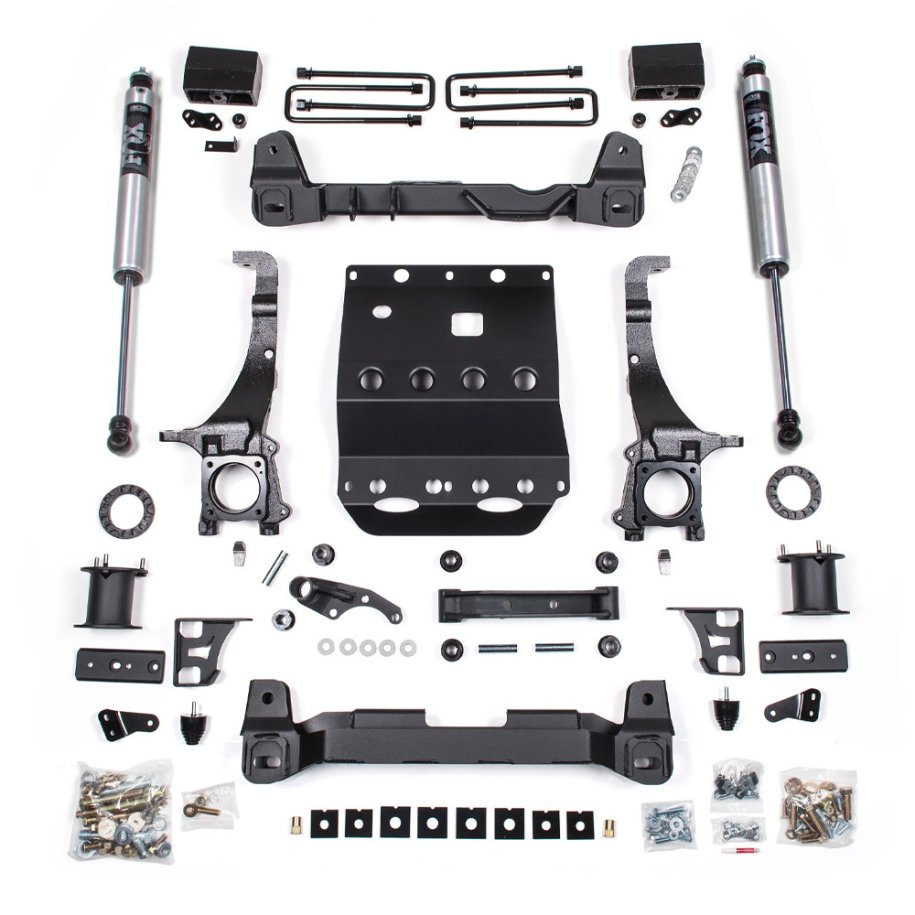

Suspension kit BDS with shocks FOX Lift 6"

• Heavy-duty CNC-machined ductile iron steering knuckles for proper geometry and ESC compatibility
• High-clearance 1/4" thick steel crossmembers for increased ground clearance
• Rear lift blocks and dual-welded u-bolts for a secure, level stance
• Adjusted to both on-road and off-road environments
• Allows clearance for 35" tyres

In the box:

• Front strut spacers
• Front crossmember
• Front brake line relocation brackets
• Rear crossmember
• Rear brake line relocation brackets
• Rear blocks
• (2) Rear nitro shock FOX Performance 2.0 IFP
• Differential relocation brackets
• Skid plate
• Steering knuckles
• Sway bar drops
• Bump stop extensions
• (4) U-bolt
• Hardware

Notes:

• Does NOT fit with TRD Pro Models
• Fit with 2WD PreRunner models
• Minor welding required
• Requires frame bracket modification
• Strut compressor required for installation
• Stock wheels cannot be reinstalled
• Can not use 17" wheels
• Recommended tyres & wheels
• 35 x 12.5 with 18 x 9 and 4.5" Backspace (Trimming may be required)
• 35 x 12.5 with 20 x 9 and 4.5" Backspace (Trimming may be required)
