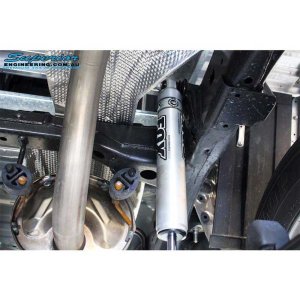

Suspension kit with FOX Performance 2.0 IFP shocks Lift 2"

• Professional lift kit, designed to fit your car
• Ensures correct driving characteristics on the lift
• Adjusted to both on-road and off-road environments
• Improves the behavior of the lifted car

Front Coilover shock specs:

• Body: 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Internal IFP mono-tube design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical
• Adjustments: Ride height preload ring

Front shock dimensions:

• Travel: 21.19"
• Compressed: 16.60"
• Extended: 4.59"

Front shock mounts:

• Top mount: oem
• Bottom mount: eyelet

Rear shock specs:

• 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

Rear shock dimensions:

• Extended: 24.82"
• Compressed: 15.70"
• Travel: 9.12"

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

In the box:

• (2) Front Coilover shock absorbers
• (2) Rear shock absorbers
• Extended shackles

Notes:

• For vehicles with headlight shackle xenon level sensor adjuster shackle modification required
