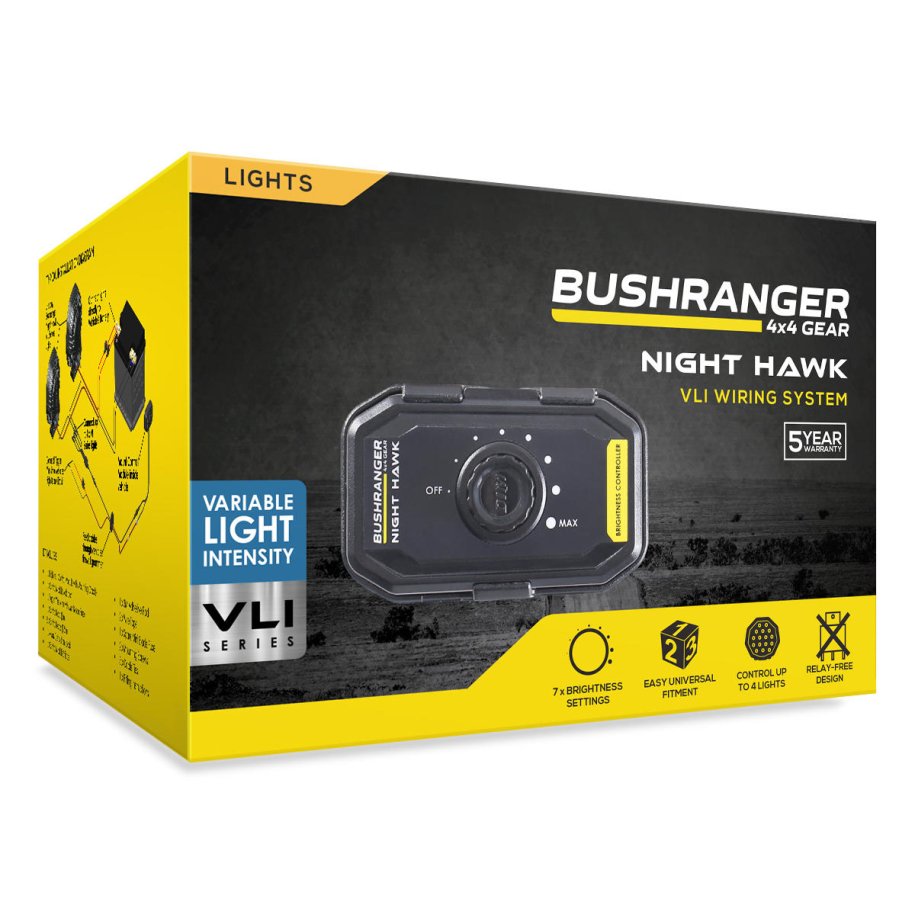

NIGHT HAWK VLI SERIES WIRING SYSTEM

If you thought the smart electronics were already doing enough, we pushed them even further by developing the first dedicated auxiliary light wiring system to incorporate relay free switching and brightness control functionality. What does this mean? Simpler wiring, easier installation, more user control and greater reliability over the traditional plug and play wiring loom. The commonly used automotive 12V relay is removed entirely and replaced with modern transistor switching, which is built into the light and the control module. Each light is powered directly from the battery, rather than through a relay, meaning there are no power restrictions for the wiring system, which is a common limitation with traditional relay-based wiring looms. Up to 4 x Bushranger Night Hawk VLI Series LED lights can be controlled by 1 wiring system and any combination of models\/sizes can be used.

The brightness control function allows the user to adjust the brightness of all lights on the system with 7 different light intensity settings giving complete control to match the driving conditions. In certain conditions, vision can be greatly enhanced by reducing the intensity of light projected, for example, dense bush tracks, hilly terrain or even some highway driving where an excess of light can lead to intense reflections and eye strainÔÇ?. now you can dial these high intensity lights back to a more comfortable level. Use a second wiring system as a work\/camping \/ reverse light setup and control the intensity of the lit area. You have complete control like never before.

• \t
• Modern electronically switched wiring systemoffers a more straight forward, more reliable and smarter alternative to regular relay-based wiring harnesses.\t
• ÔÇ?Plug & Play' modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.\t
• Works with all Bushranger Night Hawk VLI Series Lights with no limitation on the power rating of each light.\t
• Wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).\t
• PWM brightness control offers 7 x brightness settings at the turn of a dial.\t
• Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.\t
• Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.\t
• Plug & Play headlight adaptors, fuse taps and additional control lead available separately.

• \t
• 1 x Brightness Control Module with Mounting Cradle\t
• 1 x Control Module Adaptor\t
• 1 x Trigger Wire (4m) with Mini Blade Fuse\t
• 1 x Control Lead (3m)\t
• 2 x Control Leads (1.5m)\t
• 1 x 4-way Distribution Lead\t
• 1 x Control Module Sticker\t
• 1 x 3M Adhesive Pad\t
• 2 x Wire Taps\t
• 1 x Spare Mini Blade Fuse\t
• 2 x Mounting Screws\t
• 5 x Cable Ties\t
• 1 x Fitting Instructions

• \t
• Voltage Range: 10 - 30V DC\t
• Standby Current Draw: 20mA\t
• Light Capacity (as supplied): Connect and control up to 2 x VLI Series lights simultaneously\t
• Light Capacity (max): Connect and control up to 4 x VLI Series lights simultaneously\t
• Brightness Control: 7 x brightness positions + OFF position\t
• Trigger Wire Connections: 4mm Bullet connectors\t
• Compliance: CE, UNECE R10
