COMPRESSOR BRACKET SUIT U\/BODY SUITS TOY PRADO 250 SERIES

COMPRESSOR BRACKET, SUITS UNDERBODY

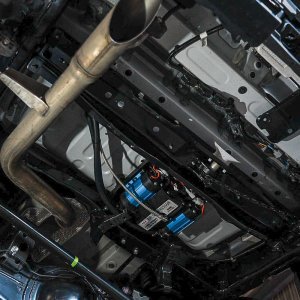

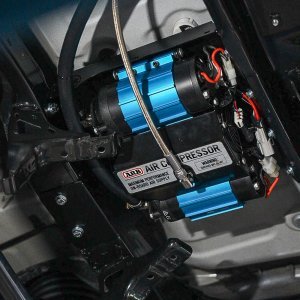

This TLR Products bracket lets you mount an ARB Twin Brushed OR Brushless under the body of your Toyota Prado 250 Series. It fits all variants and installs using existing holes with no drilling or modification to the vehicle needed for mounting this bracket.

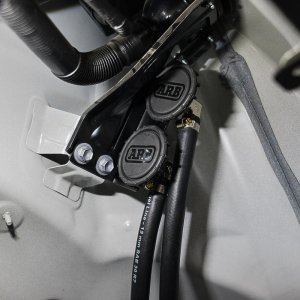

The bracket fits neatly above the spare wheel and includes parts to relocate the compressor's intake filters into the inner guard, helping to protect against water ingress.

An internal switch and air outlet bracket is included. Although if you prefer an external air outlet, you can pair this kit with the optional TLR Left-Hand Side Multi Trailer Plug Bracket (TLR712102) and Air Coupling Bracket (TLR710001) to mounting the Air coupling on the rear bumper bar of the vehicle.

Additional Components Required for installation (All Sold Separately)

• ARB Air Compressor of choice.
• ARB Braided Hose Reinforced JIC-4 2 meters (0740205)
• ARB Elbow JIC-04 (M) - JIC-04 (F) (0740104) • ARB Air coupling (0740111)
• ARB Pump Up Kit V2. (171302V2)


FEATURES:

• \t
• Versatile Compatibility - Suits both ARB Brushless OR Brushed, Twin OR Single Air Compressor models.\t
• Space Saving Design - Mounts neatly under the body, above the spare wheel.\t

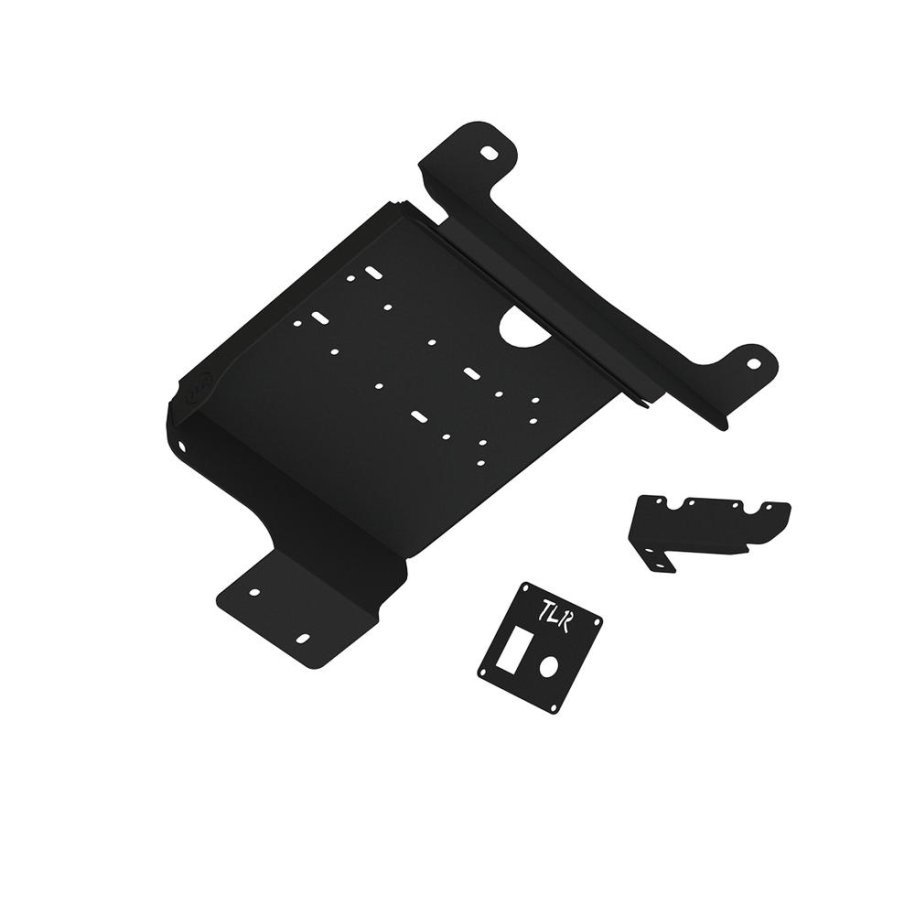

• Durable Construction - Laser cut from zinc-coated 2.00mm steel.\t
• Corrosion Resistant Finish - Powder coated in a black textured finish for rust protection.\t
• Hassle Free Installation - Use of pre-existing holes. No drilling of the body work required.\t
• Comprehensive Kit - Electrical Switch and Coupling mount included
