Rear extended-travel shock accessory system TeraFlex Lift 1,5-6"

• Professional set, matched to the car
• Improves handling
• Adapted to both on-road and off-road conditions
• Improves the behavior of the car

Coil spring retainer kit specs:

• Easy installation
• Zinc plated

Forged sway bar kit specs:

• Allows for up to 16" of wheel travel
• Relocates the sway bar from the axle to the frame to prevent damage to the sway bar
• Provides same stability as factory rear sway bar
• Forged and heat-treated 4140 Rear Sway Bar w/ hex head design
• Features curved Forged Sway Bar Arms for clearance through full suspension movement
• OEM-style Teflon-coated Sway Bar Bushings for reduced noise and long life

Driveline center support mount lowering spacer kit specs:

• Solid construction
• Recommended for cars with suspension lift
• Prevents possible vibrations
• Lowers the rear driveline center support mount to improve driveline angles during full droop

Extended-travel axle bracket kit rear upper control arms specs:

• Eliminates pinion dive during full droop w/ extended-travel Falcon shocks
• Corrects rear suspension geometry and improves handling and ride quality on vehicles w/ 1"+ rear lift
• Relocates rear upper control arm axle mounts
• Welded and powder coated steel brackets
• High-quality OEM grade coatings on all components to prevent rust and corrosion
• Can be used with stock control arms or adjustable Alpine IR or Alpine short control arms

Extended brake lines specs:

• Made from stainless-steel
• Extended structure
• Allows for up to 16" of rear suspension travel

Brake line anchor kit specs:

• Clamps around rear sway bar link and brake line for easy installation
• Anchor can be positioned for best fit and clearance
• Molded rubber construction safely and securely retains brake line
• Molded rubber also features a recessed channel for vehicle speed sensor wire

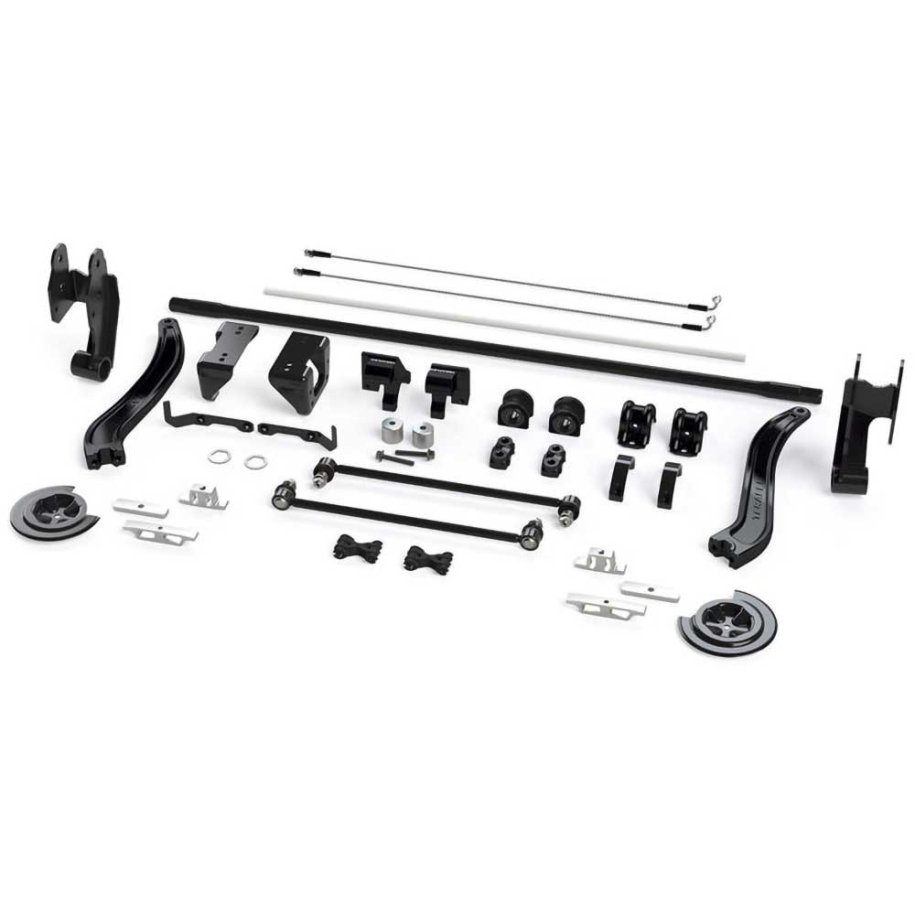

In the box:

• Rear coil spring retainer kit
• Rear forged sway bar kit ST
• Rear driveline center support mount lowering spacer kit
• Rear upper control arm extended-travel axle brackets
• Rear extended brake lines
• Rear brake line anchor kit

Notes:

• Requires aftermarket wheels w/ 4.75" backspacing or less - or Offset wheel adapters (TX1057000) for stock wheels (sold separately)
• Requires a minimum of 2,5" rear bump stops
• Sport/Overland fenders and Rubicon fenders require 2.5" Front and 2.5" Rear Bump Stop/Strike Pad Extensions/Shims to fit 35 tires and 37" tires, respectively
