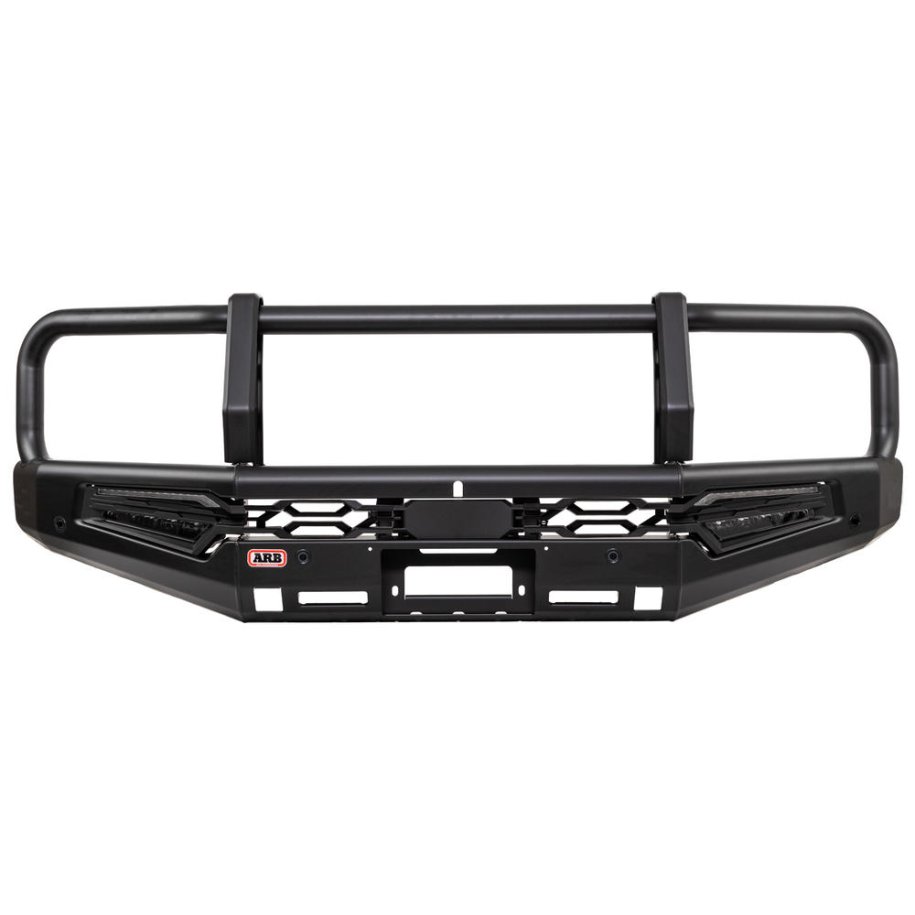

SUMMIT MKII COMBAR MATT BLK SUIT MY22 FORD RAPTOR

ARB SUMMIT BAR MKII

The state-of -the-art Summit MKII Bar takes key components of Its flagship namesake and kicks It up a notch with an ultra-modern design that's constructed to turn heads.  Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB's excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play indicator \/ clearance light \/ Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.


FEATURES:



• \t
• Vehicle specific design suitable for the Ford Ranger Raptor\t
• Registered design of styling and design components\t
• Durable steel construction for maximum protection\t
• Incorporates ARB's renowned multi fold upswept and tapered wing design for optimum strength and approach angle\t
• 30mm radius on wings and centre section\t
• 60.3mm outer frames and centre cross tube\t
• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts\t
• Split pan design for maximum strength and airflow\t
• Extensive protection panels on centre and either side\t
• Press formed top pan and aluminium (powder coated matt black) winch cover panel\t
• Twin ARB Jack or Hi-Lift jack points located in the lower pan\t
• Two aerial brackets located on the centre frame\t
• Optional Roller Fairlead Cover, Matt Black 3501070\t
• Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb\t
• Provision to accommodate ARB Intensity, Intensity IQ and Solis LED's and a range of Bushranger lights\t
• Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights\t
• Compatible with original equipment safety features\t
• Bar adds approximately 184mm to the overall length of the vehicle\t
• Approximate weight of the bar, chassis mounts and fitting kit is 82kg. Approximately 19kg is removed from the vehicle for fitment of the bar\t
• Metaprep primer for additional corrosion resistance\t
• Finished in matt black powder coat with the option to colour code to vehicle colour
