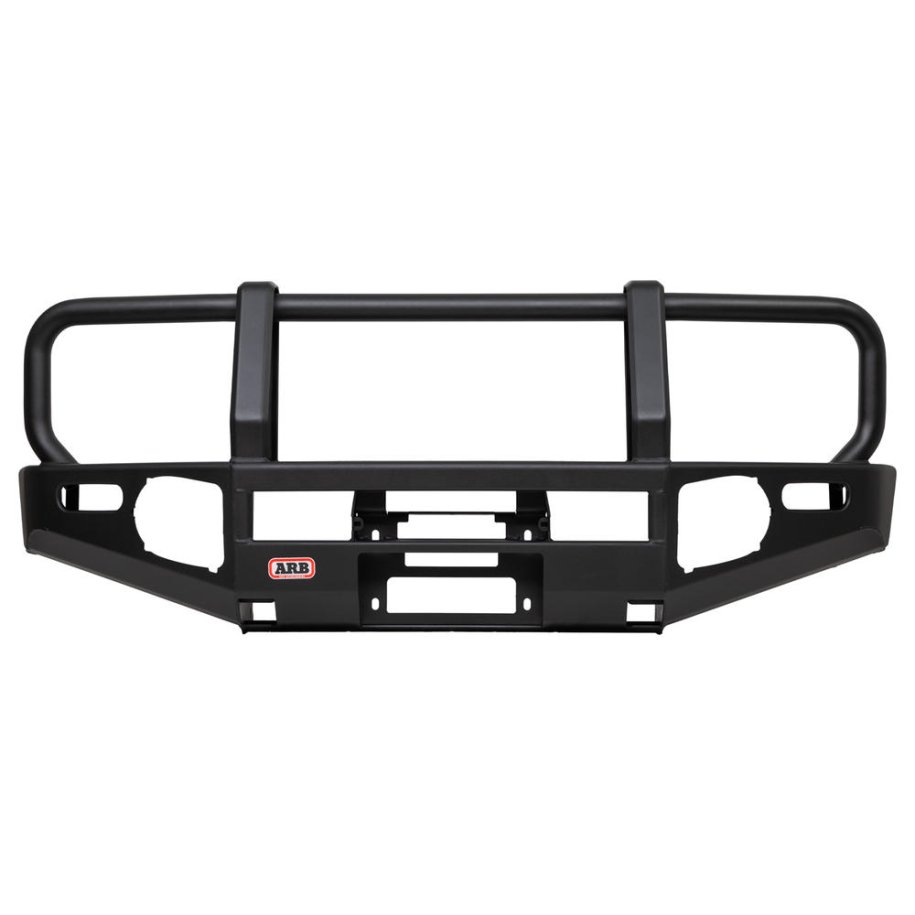

COMBAR SUIT JIMNY MY19



• Vehicle specific design for the Suzuki Jimny MY19.
• Durable steel construction for maximum protection.
• Incorporates ARB's renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 10mm radius on wings and centre section. 47.6mm outer and centre cross tube.

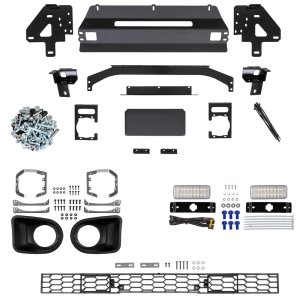

• Engineered, air bag compatible mounting system secures to the chassis via high tensile M10 fasteners.
• 3 piece grill for split pan.
• Split pan design for maximum strength and airflow.
• Centre protection panel.
• Pressed form top pan and aluminium (powder coated black) winch cover panel.
• Twin ARB Jack or Hi-Lift jack points adjacent to the bar uprights.
• Includes ARB LED Indicator and Clearance light.
• Will accommodate Warn and mid frame winches up to 8,000lb.
• Provision to accommodate ARB Intensity LED's and a range of Bushranger lights.
• Provision for OE headlight washers.
• Provision for OE foglights.
• Provision for optional ARB Fog light covers part no 3500680.
• Approach angle increased from 35-¦ to 37-¦.
• Bar adds approximately 120mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 45kg. Approximately 8kg is removed from the vehicle for fitment.
• Finished in Integrit textured black powder coat. Integrit not suitable for colour coding.
