BRKT CKSA/CKMA/CKMTASUITS LC200

AIR COMPRESSOR BRACKET

Where do I mount my ARB Compressor?

Mounting Compressor's in modern day vehicles become more and more of a challenge as engine bays in today's vehicles don't allow much room for any added accessories.
To combat this ARB has introduced an engineered, reliable, quality bracket system to properly integrate your ARB compressor into your vehicle.

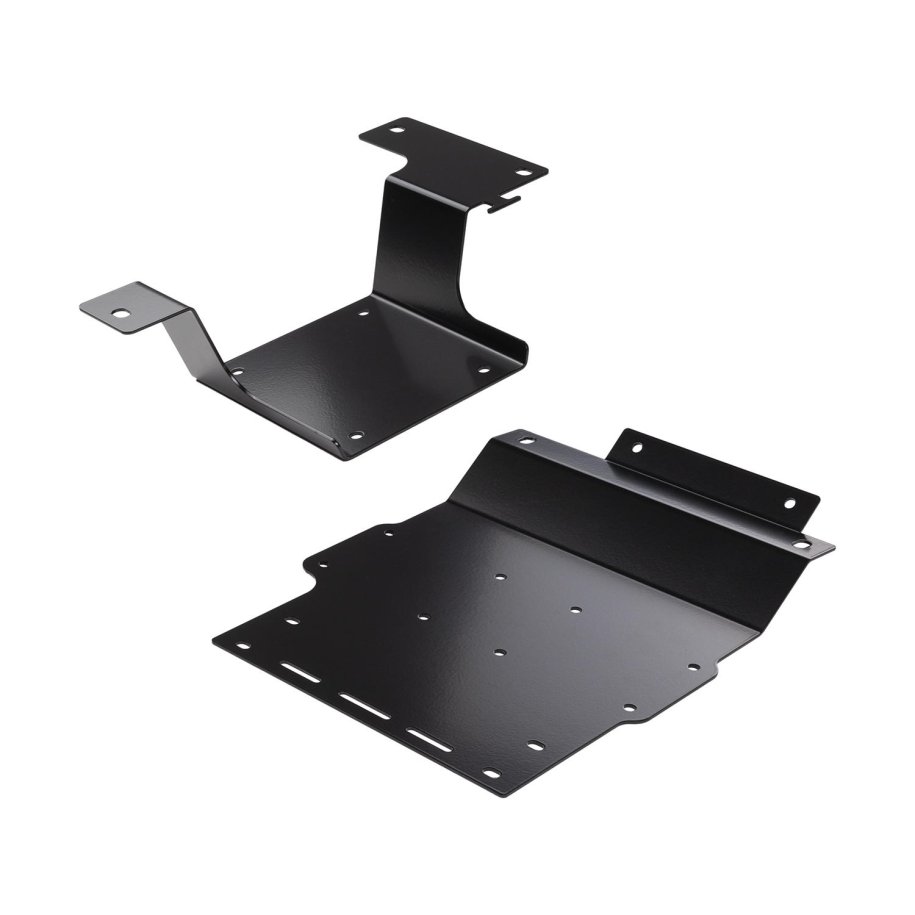

Toyota Landcruiser 200 Series Bracket System
The Landcruiser 200 Series Compressor Bracket allows you to install a CKMTA (twin), CKMA (single) or CKSA (locker only) compressor with optional Air Locker Solenoids, 4L Air Tank, Quick Connect Coupling, Switch, Manifold kit (CKMTA only) and ARB LINX PRV to the rear RHS of the vehicle behind the trim panels.
The RHS rear guard location was chosen as it provided enough space to cater for a twin compressor and 4L air tank and doesn't interfere or consume with cargo loading space.

Fitting

The Landcruiser 200 Series Compressor bracket includes a comprehensive Installation guide showing detailed instructions on fitting the CKMTA (twin) ARB Compressor with 4L Air Tank and manifold kit with switch and Quick Connect Coupling to the bracket and correct installation of the bracket to the vehicle.
This configuration requires the largest amount of space and is the most detailed in fitment requirements. CKMA (single) and CKSA (locker only) can also be fitted to this bracket using the same instructions as they require less space for fitment.
Fitting times will vary depending if vehicle has a drawer system fitted or not. To remove the 3rd row seat, guard panels and refit after compressor bracket is fitted will take 1 hr. Fitted the compressor to the bracket, wiring the compressor and fitting the bracket to the vehicle will take 2.5 hours. If Drawers are fitted please allow 2 hours to remove drawers and refit after compressor and panels are reinstalled.
