SUMMIT RSTB AMAROK W/SENSORS3000KG PRE 11/16 REQ 3570040

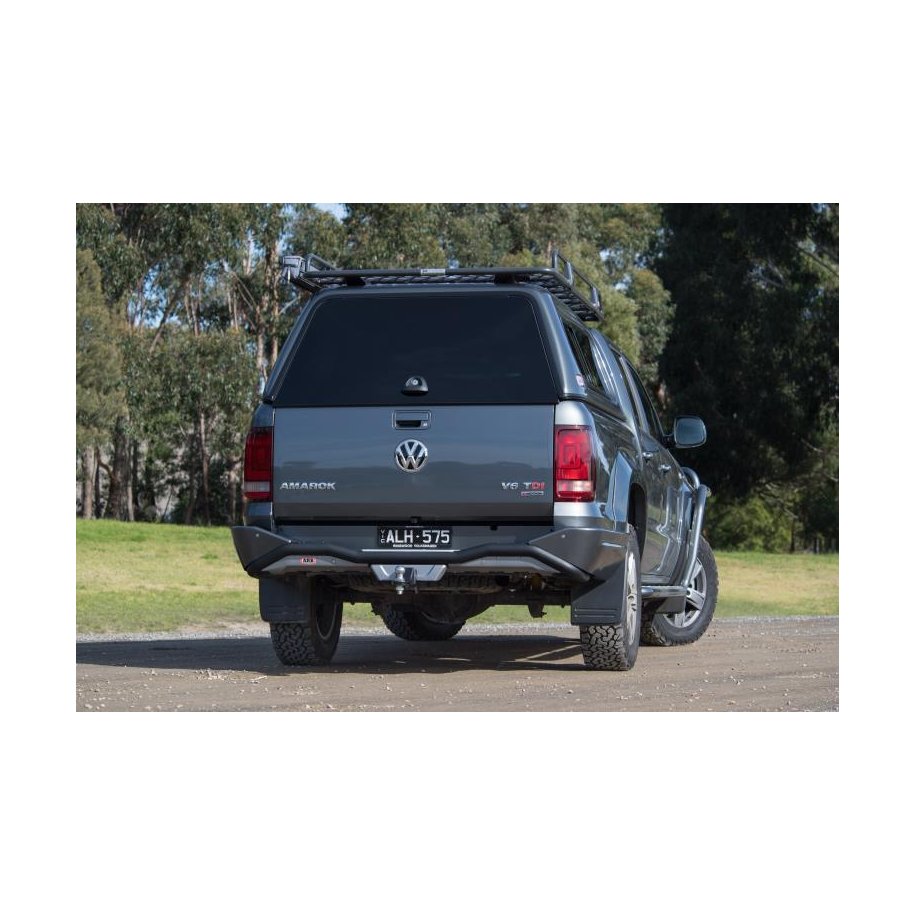

Summit Rear Step Tow Bar

The modern, stylised rear step tow bar provides protection, easy access to the vehicle and maximum towing capacity. The Summit rear step tow bar is compatible with OE parking sensors and features a textured powder-coated 60.3mm tubular frame.

Protection & Styling Characteristics:

• \t
•  Vehicle specific design for the VW Amarok dual cab. (Supplementary fitting kit require for pre 2016 facelift model).\t
•  Registered design of styling and design components.\t
•  3.5T Class 4 50mm hitch with gusset supplied as standard.\t
•  60.3mm x 2.6mm ERW tubing used for main frame. Tubing finished in Integrit textured black powder coat.\t
•  Two tow chain fixture points.\t
•  Separate bolt on wings supplied in a satin black powder coat. Fitment requires 70mm access holes to be drilled through the lower section of the vehicle tub.\t
•  One piece beaver panel supplied in a satin black powder coat. A laser cut hole provides access to the spare wheel lowering mechanism.\t
•  Centre lift up panel finished in a light grey powder coat.\t
•  Provision for mounting ARB trailer plug wiring.\t
•  Provision for ARB air compressor outlet.\t
•  Provision for mounting ARB Trailer Camera wiring (part # 10600030).\t
•  Provision for 50amp Anderson plug.\t
•  Anodised silver extrusion featuring ridges for grip fitted to centre section. Left and right step panels finished in Integrit textured black powder coat.\t
•  Off-road jack points on wings and under the 60.3mm tube.\t
•  Designed to accept Bushranger Recovery Hitch part # 58X22\/A.\t
•  Provision for OE rear park sensors.\t
•  LED number plate lights\t
•  Provision for OE rear camera.\t
•  Fitment of the RSTB (excluding tow hitch) adds approximately 35mm to the overall length of the vehicle.\t
•  The Summit RSTB weighs approximately 69kg. Factory bumper removed for fitment weigh approximately 30kg.
